Platan Gateway

Platan Gateway is a series of IP-analogue gateways designed to take advantage of cheap Internet calls made from the analogue phones. It’s a perfect solution for small and medium companies, looking for both savings and the newest telecom systems.

Excellent voice quality and support of many concurrent calls create a system, which capacity is tailored to the company’s real needs. Platan Gateways support any VoIP provider and PBX systems of any producer.

  • Three models: 8, 16 or 24 users
  • Up to 24 concurrent calls
  • Perfect voice quality
  • Easy to use

Platan Gateway

Platan Gateway - key features

Savings

Savings
Cheap Internet telephony, the possibility of using inexpensive analogue phones and even the previously bought PBX – it all influences the lower cost of calls and of PBX system modernisation.

Look Who's Calling

Look Who’s Calling
Before answering the phone you can see who’s calling – the caller’s number displays on the analogue phones connected to the gateway. You can also dial the numbers saved in the calls history and in the phone’s phonebook.

Efficiency & Security

Efficiency & Security
All users can make & receive calls at the same time, as every telephone port has its own SIP account assigned. Embedded mechanisms prevent the hackers’ attempts of attacks, and assure the high level of security.

Excellent voice quality

Excellent voice quality
The excellent voice quality is owned to the advanced cancellation of echo, which is characteristic to the VoIP calls. The gateways support the T.38 standard, so the faxes can be also sent over the Internet (Fax over IP).

Easy to use

Easy to use
Legible, intuitive web interface with handy help makes the remote management and programming quick and easy.
Universal, compact casings can be mounted in the RACK 19” ICT or on the wall.


Platan Gateway - features & services

  • Calling Line Identification (CLIP).
  • Fax over IP (up to 24 faxes, T.38 standard for all ports).
  • HTTP/HTTPS provisioning.
  • Short numbers for internal calls.
  • Web interface (Polish, English, Russian).
  • Remote access by MyServer platform.

Note: Three models of Platan Gateway are available: GW-8, GW-16 and GW-24, to connect 8, 16 and 24 analogue phones (FXS) respectively.

Practical application of Platan Gateway

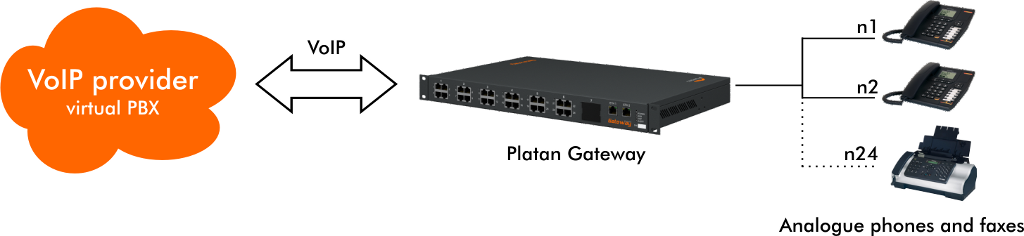

1. Connecting analogue phones and faxes to the virtual PBX.

1. Connecting analogue phones and faxes to the virtual PBX.

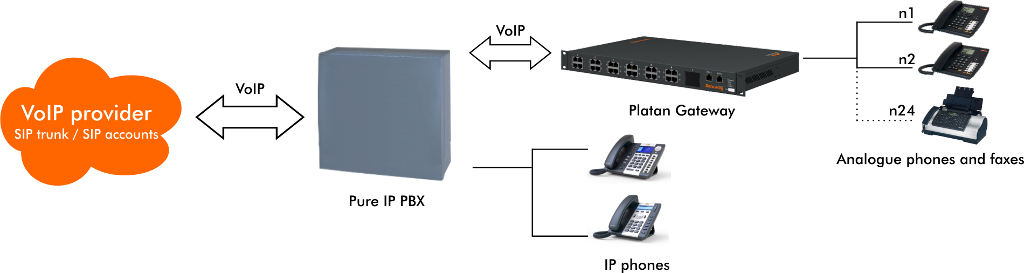

2. Connecting analogue phones and faxes to the pure IP PBX.

2. Connecting analogue phones and faxes to the pure IP PBX.

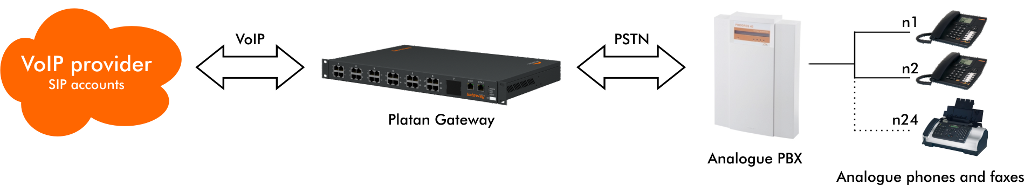

3. Connecting analogue PBX to the VoIP provider.

3. Connecting analogue PBX to the VoIP provider.

Product gallery

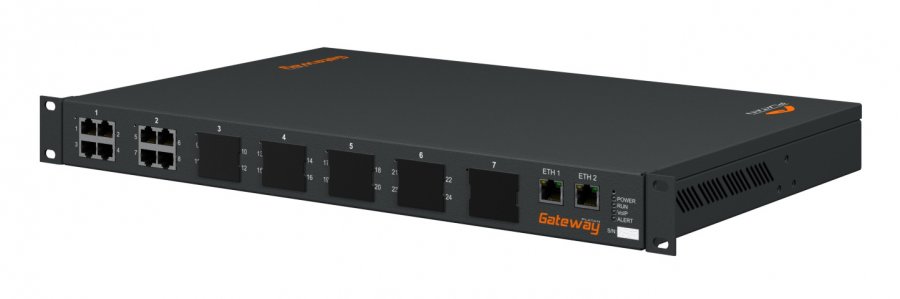

Platan Gateway (GW-8 model - IP gateway for 8 users)

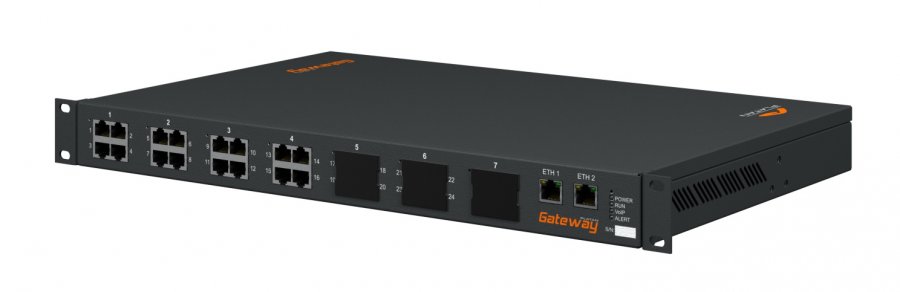

Platan Gateway (GW-16 model - IP gateway for 16 users)

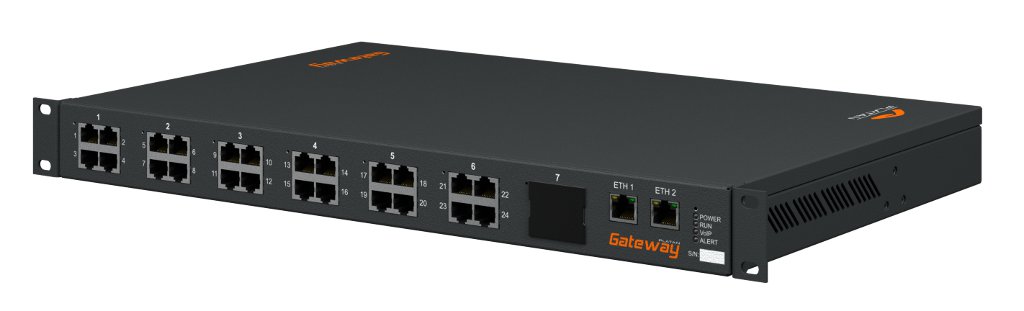

Platan Gateway (GW-24 model - IP gateway for 24 users)

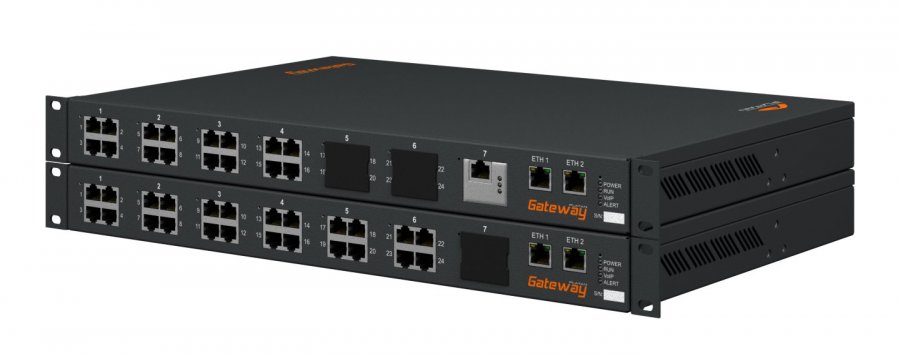

Two IP gateways: Platan GW-16R (at the top, for 16 users, with call recording) and GW-24 (at the bottom, for 24 users)

See on the movie





Unboxing: Platan Gateway
(English subtitles available)







Download:

  • Platan Gateway - datasheet [open]
  • Platan Gateway REC - datasheet [open]
